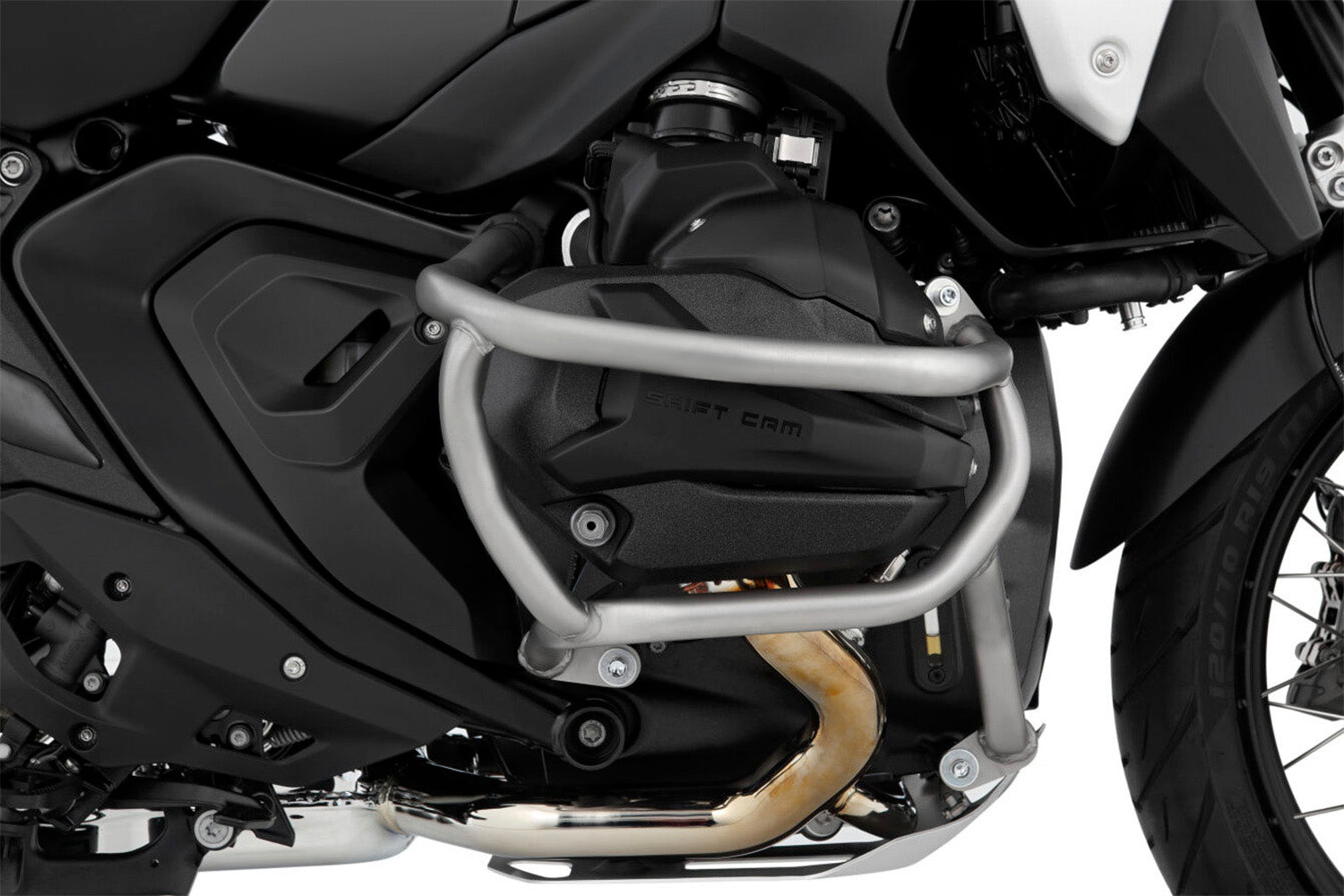

Wunderlich ULTIMATE Engine Protection Bars R 1300

The Wunderlich ULTIMATE engine protection bars are uncompromisingly designed for maximum protection in adventure riding

Function and features of the Wunderlich ULTIMATE engine protection bar

• The Wunderlich ULTIMATE engine protection bars are uncompromisingly designed for maximum protection in adventure riding
• Maximum protection through additional structural reinforcements that significantly increase the rigidity of the bar
• Perfect protection for cylinders, valve covers and both lambda sensors reduces the risk of costly damage to the motorcycle itself
• Even distribution of forces across four mounting points per side
• The bar layout is precisely aligned with the contours of the Boxer engine
• No impairment of ground clearance
• Maintenance-friendly: oil changes including filter cartridge are possible without removing the engine protection bar
• Plug & Play fit: straightforward installation with detailed mounting instructions included

Compatibility note

• Also compatible with:
• the original BMW cylinder head cover protector
• the original Option 719 milled ignition coil cover

Note and our recommendation

Bikes are often designed so that – when an engine protection bar is installed – the footrest and bar touch down at nearly the same lean angle, which is typically uncritical with regard to tyre grip. It's important to keep in mind that various factors – such as the bike's load, or riding through a dip or pothole – can reduce the effective lean angle.

For riders who want greater clearance before contact, we’ve developed our lean angle indicators (#13515-200), which can be easily screwed to the outside of the original Enduro footrests.

Technical data

• Material
• High-quality stainless steel with high tensile strength and elongation, handcrafted with precisely formed radii, clean welds and accurate joints
• Dimensions
• Tubing diameter: 25 millimetres
• Weight
• 4.6 kg
• Colour
• Stainless steel finish

Your Wunderlich benefits

• Wunderlich premium product. Small series. Handmade.
• Wunderlich design. Integrated and functional.
• Made in Germany
• Wunderlich 60/5
• 60-day return policy – test without risk!
• Plus 5-year warranty

World-travelling adventure riders know this well: there are days when the bike tips over more than once – because the conditions are unlike anything encountered on the well-maintained roads of civilised Europe. Or because fatigue, heat or cold simply sap the strength and stamina to hold the bike upright. Beyond civilisation, it becomes all the more important to rely on equipment that can withstand mechanical stress and just keep going – because staying mobile, moving and independent can be vital to minimising personal risk.

This Wunderlich ULTIMATE engine protection bar is purpose-built for adventure riding.

It reliably protects the cylinders, valve covers, and both lambda sensors. The all-round protection concept increases passive safety and riding enjoyment. In the event of a crash or tip-over, forces are optimally distributed via the bar structure to the solid mounting points, helping to avoid load peaks and reduce material stress. Our ULTIMATE protection bar is also designed to be maintenance-friendly: both the oil drain plug and the filter cartridge are fully accessible without disassembly.

The protection bar is made of 25 mm precision stainless steel tubing. The segments are shaped using CNC pipe bending machines and then neatly welded. Visually, the bar integrates seamlessly into the bike’s design and complements its distinctive look. The stainless steel surface is glass bead blasted and additionally electro-polished.

13200-100
