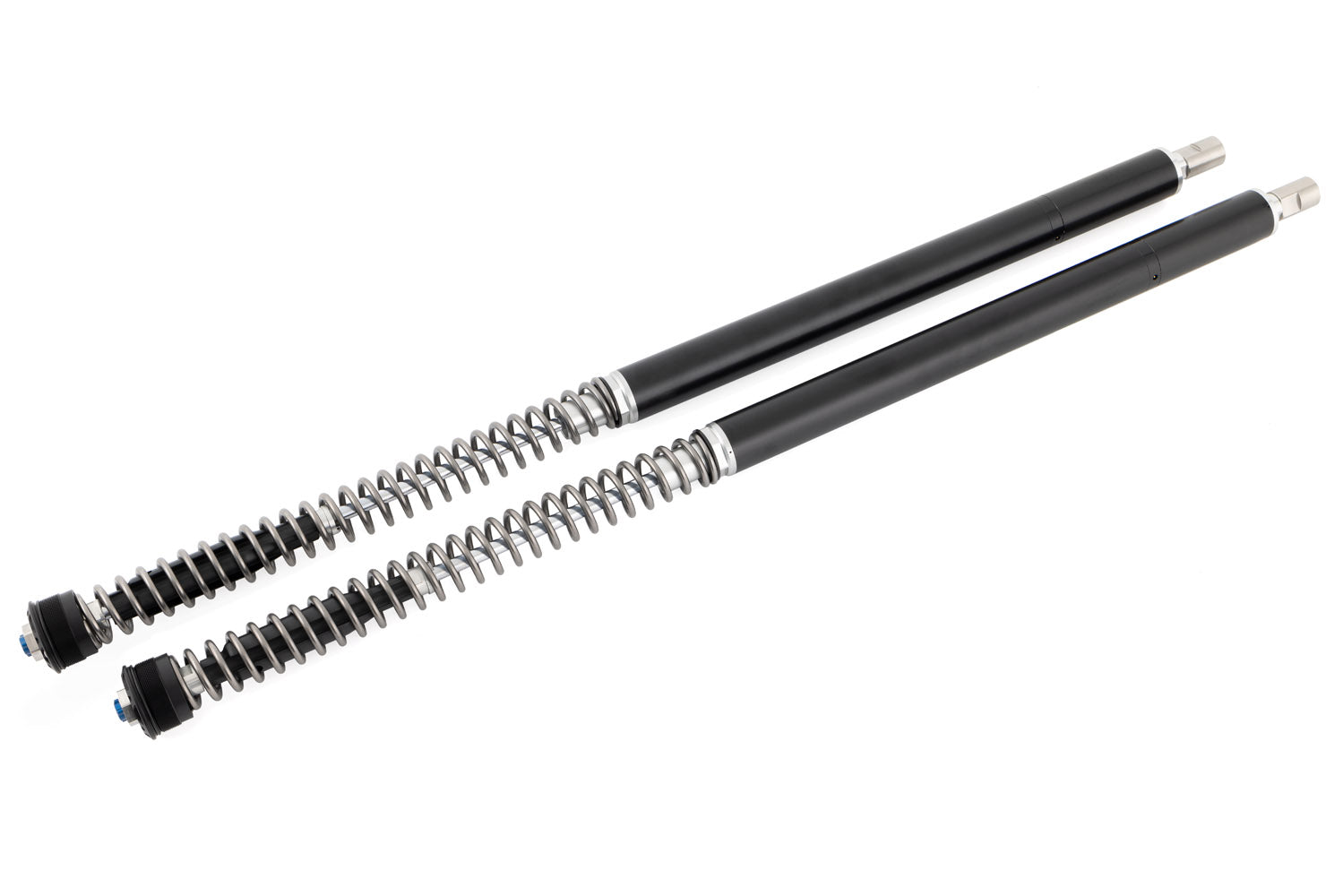

Wunderlich Suspension Cartridge C4

Attention: This cartridge fits all model years

Facts and Product Features of Wunderlich Suspension powered by TracTive C4 Cartridge Sets

High-performance cartridge set of the latest generation as an upgrade or replacement for the stock suspension. Designed to meet the high demands of discerning adventure riders who frequently go off-road, touring riders who regularly carry heavy loads, and for riders who seek extra safety reserves. With the Hydro-Stop, a second damping stage that reduces the risk of bottoming out.

We select the spring rate of the cartridge based on your personal riding profile specifications.

• Damping Characteristics
• Our cartridge sets are specially developed for each vehicle and application, offering high performance and impressive reserves
• The well-balanced, sensitive damping behavior of our suspension components ensures neutral and predictable handling, increasing confidence in your own motorcycle and enhancing personal riding pleasure
• The cartridges excel with outstanding transparent feedback, optimizing tire-road grip, wheel control, and stability while reducing tire wear
• The rebound and compression damping adjustment with 18 clicks allows individual fine-tuning of damping with the suspension tool
• To achieve optimal responsiveness,
• the oil channels are generously dimensioned to minimize oil flow resistance
• we use pistons with a large diameter (35 mm piston - the largest on the market)
• as well as low-friction seals and special shim stacks
• The cartridge set is equipped with a so-called Hydro-Stop to prevent harsh bottoming out, where a second integrated damping piston forms an additional damping stage at high compression speeds
• The options of rebound and compression damping adjustment in combination with the Hydro-Stop reduce the risk of frame- and fork overloading, simultaneously increasing comfort and safety – not only off-road
• The closed aluminum cartridge housings support thermal stability and performance of the system through optimal heat dissipation
• The generous quantity of oil used ensures
• low, optimal oil operating temperature
• resulting in stable performance at the highest level
• and extended lifespan of both the damper and oil
• Spring Characteristics and Preload
• Manual spring preload adjustment: The spring preload can be adjusted using the included suspension tool
• The generous adjustment range can compensate for a wide range of load conditions
• Tuning
• Wunderlich Suspension for high demands
• Customization
• We select the spring rate of the springs based on your personal riding profile specifications: After choosing your cartridge set, simply determine your personal specifications during the ordering process. These serve as the basis for selecting the appropriate spring for you
• Maintenance
• Each cartridge can be professionally serviced at the Wunderlich Suspension Center
• The suspension tool is included in the scope of delivery

Technical Specifications

• Material
• The cartridge housings are precisely manufactured from high-quality aluminium
• Special Features
• Hydro-Stop to reduce the risk of bottoming out
• Closed cartridge system
• Processing Quality
• We exclusively use highly durable components such as micro-machined, inductively hardened, heat-treated 42CrMo piston rods, high-quality bearings, stainless steel bushes, and low-friction seals
• Dimensions
• Piston diameter 35 mm
• Piston rod diameter 10 mm
• Spring Preload Adjustment
• Manual
• Installation Location
• Front fork

Your Wunderlich Advantages

• Wunderlich product. Small series. Handcrafted.
• Wunderlich design. Functional and integrated.
• Tested by Wunderlich
• Made in Europe
• 5-year warranty when maintenance intervals of 24 months are observed
• with German type approval
